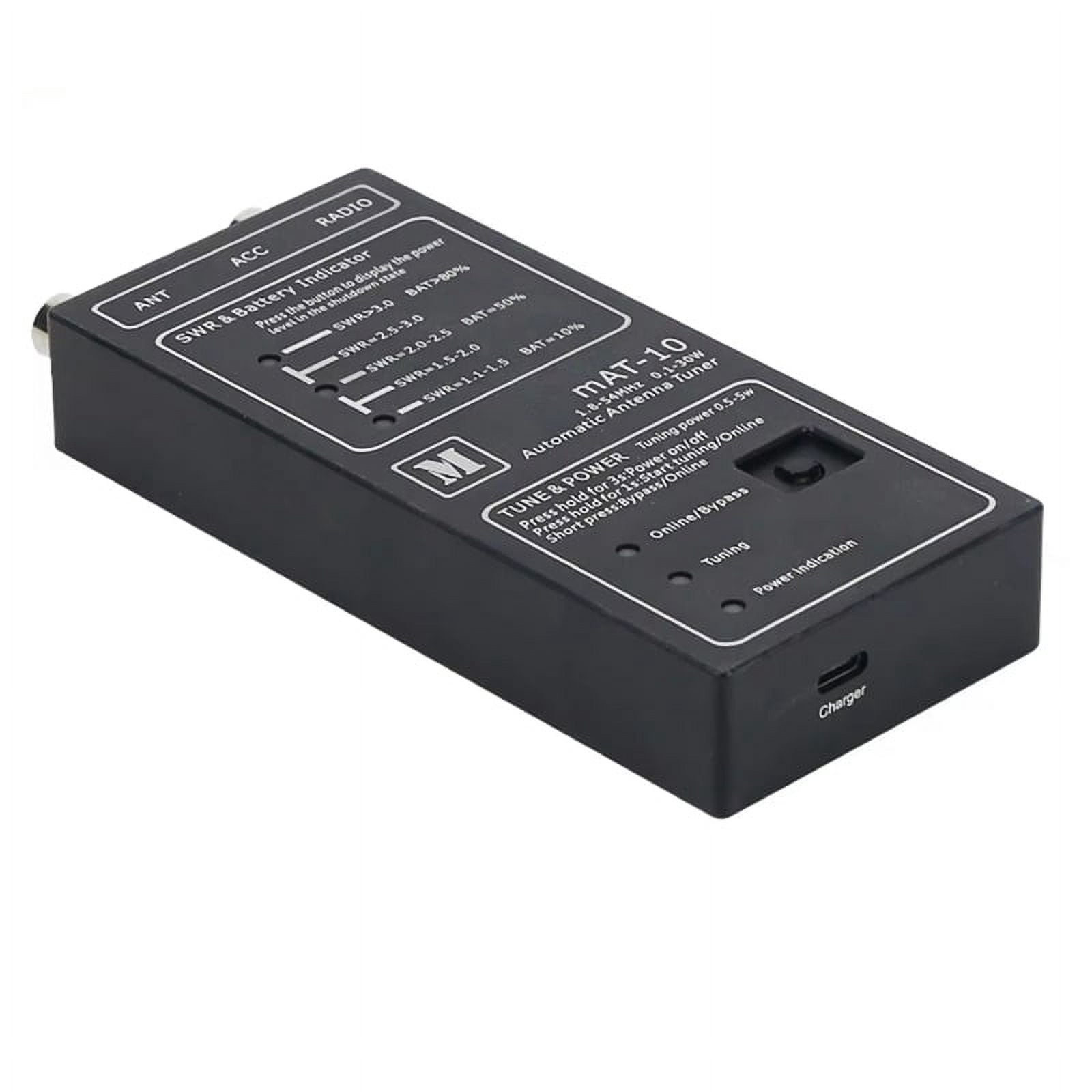

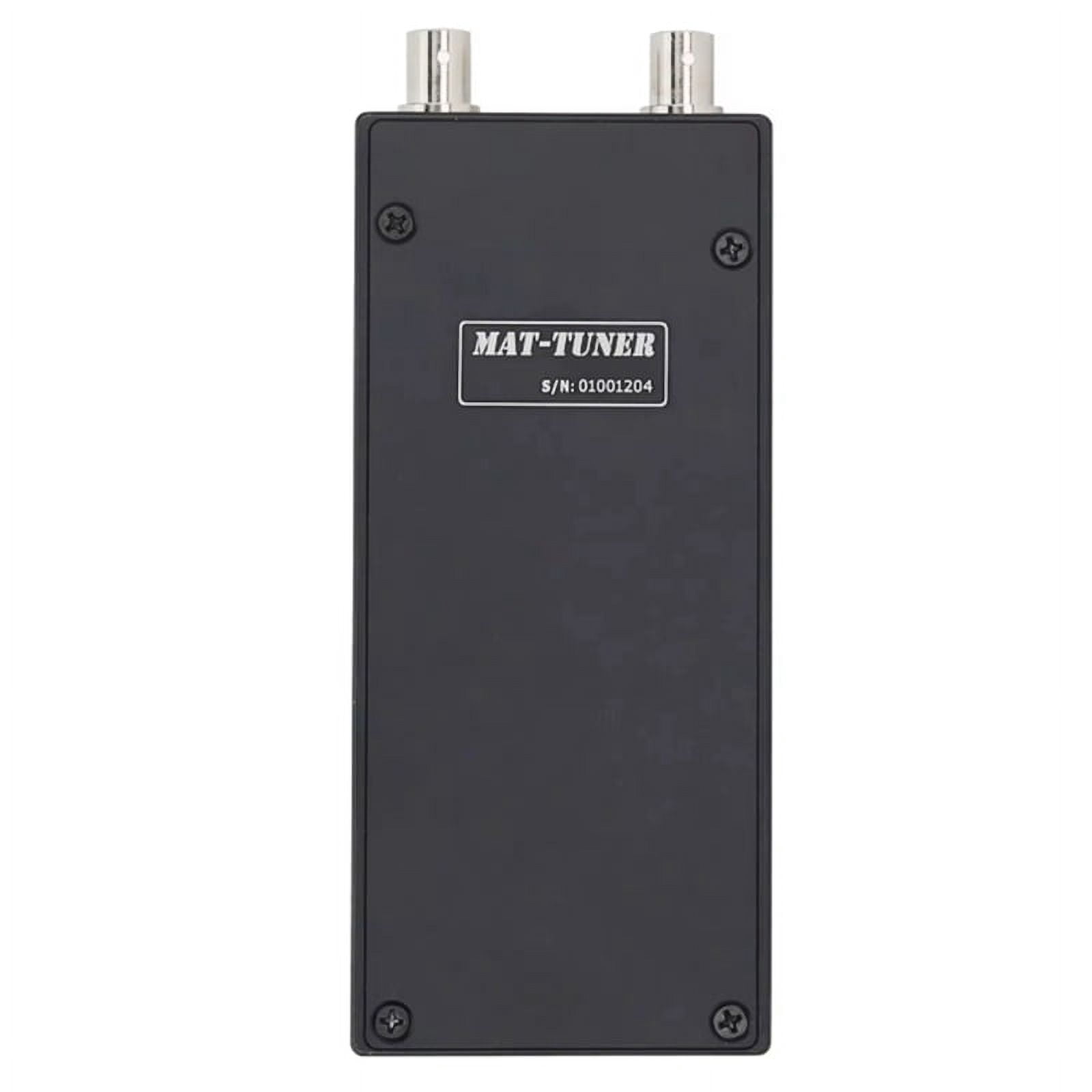

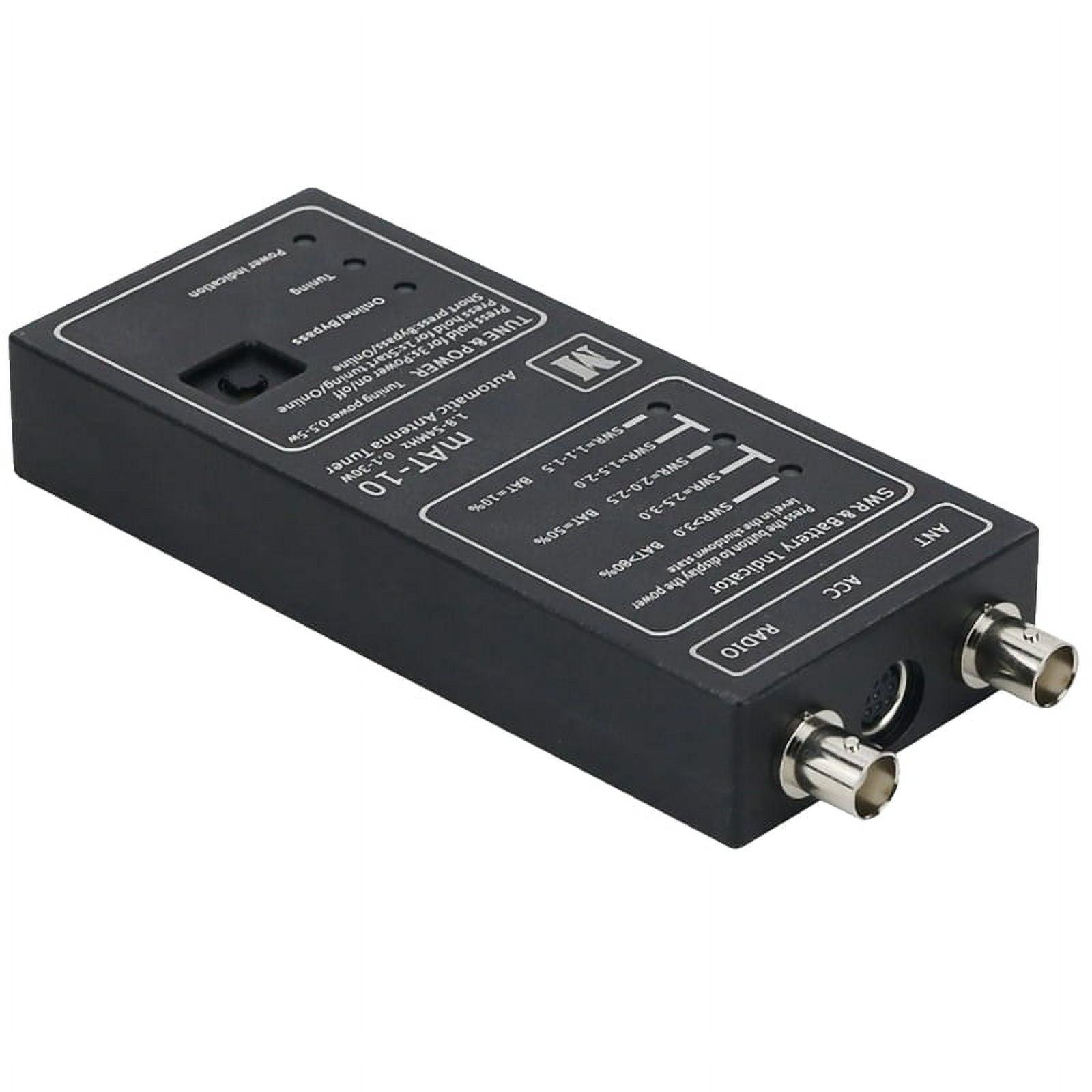

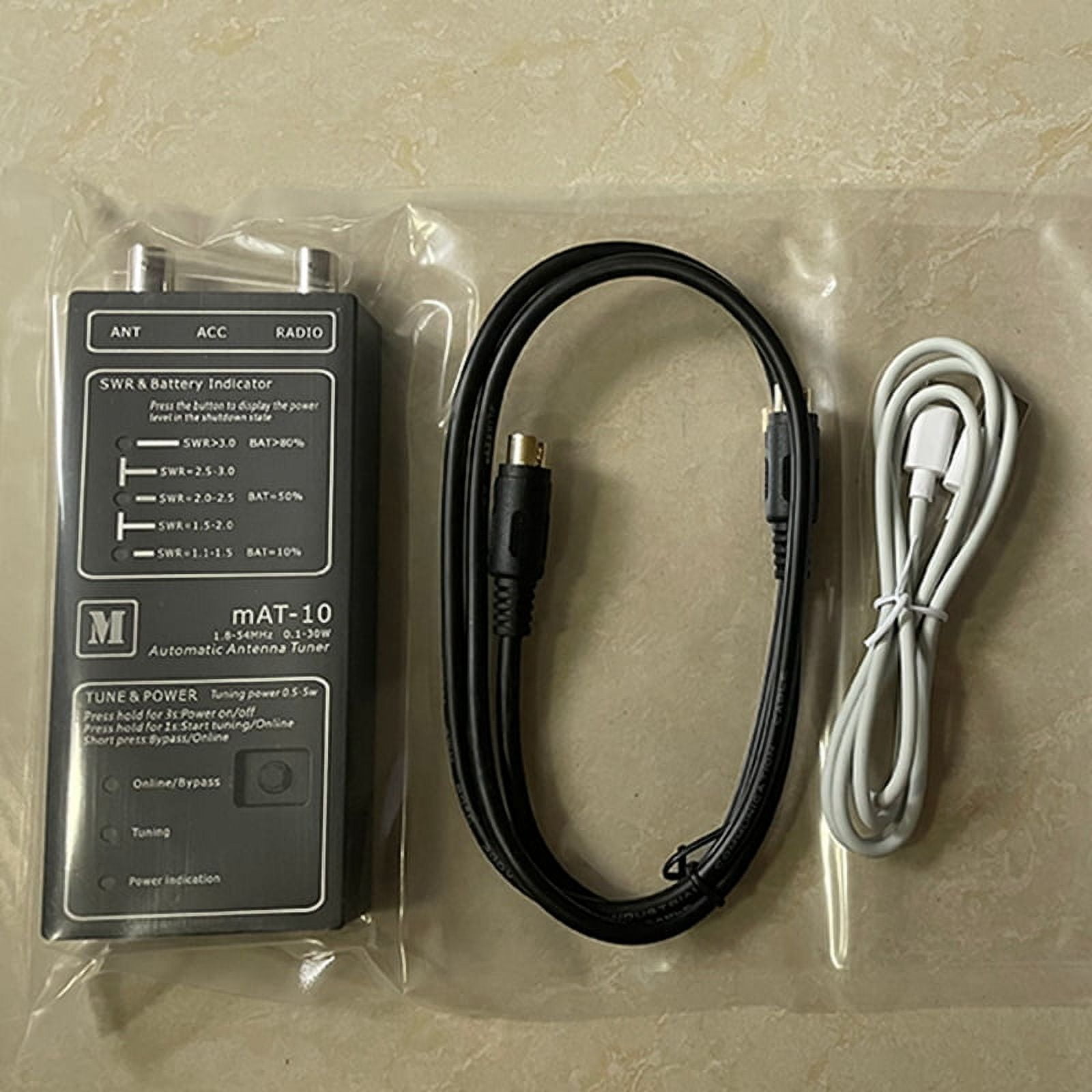

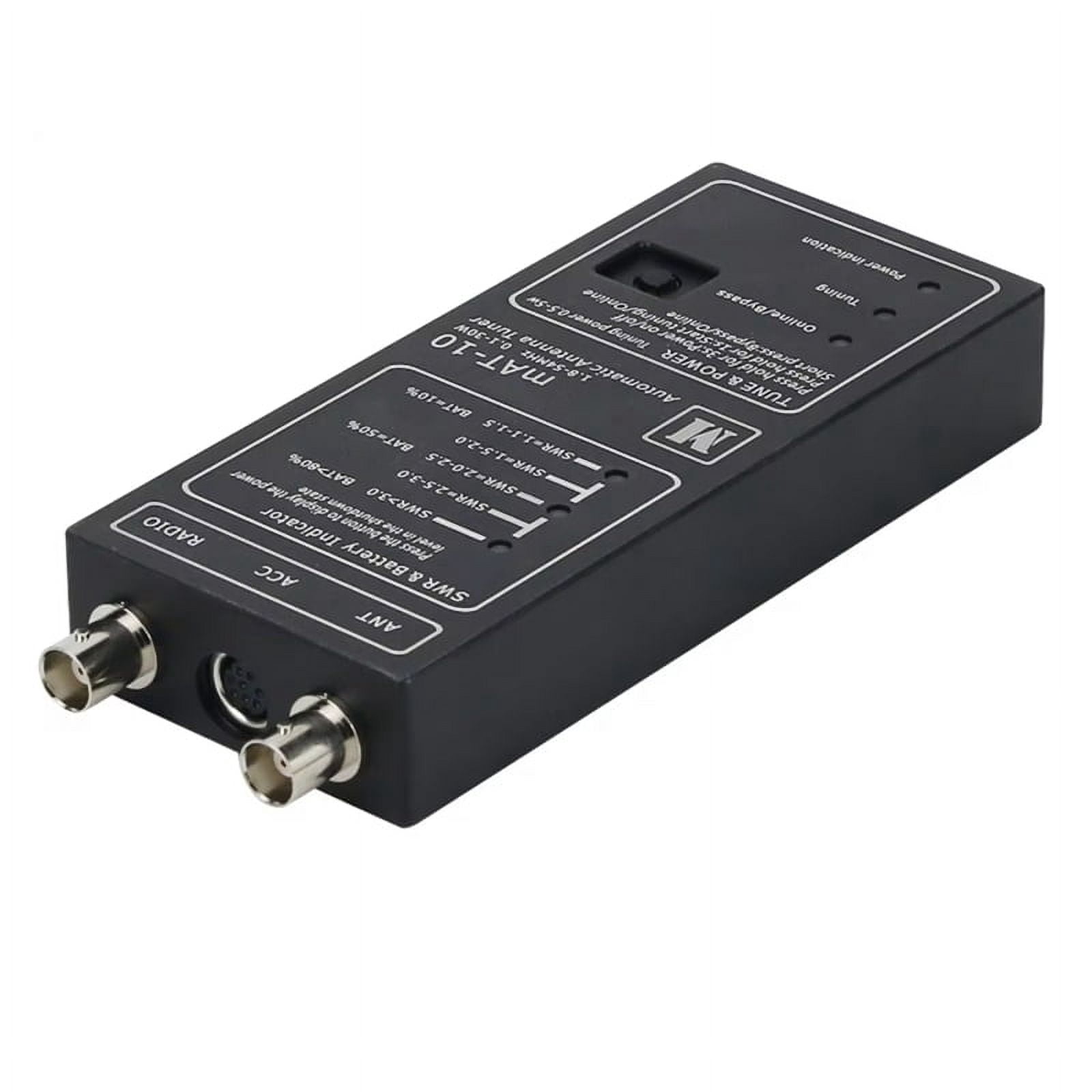

MAt-10 Automatic Antenna Tuner 1.8-54MHz 0.1-30W for FT-817/818 QRP Radio

When mAT-10 is used in other QRP transceivers, it does not need data cables and work only by connecting cables. The tuning process can be completed by pressing the Multi-function key on the panel. It is easy to operate. The mAT-10 is connected to the ACC port of the FT-817/818 transceiver through data cable mAT. The ACC interface allows an external device such as a PC or the mAT-10 to control the FT-817/818 by sending it serial commands. The mAT-10 has the function of “one key tuning”. The tuner can work within the range of 1.8MHz to 54MHz at power levels up to 30 watts. It tune dipoles, verticals, Yagis, or virtually any coax fed antenna. It match an amazing range of antennas and impedances, far some other tuners you may have considered, including the built in tuners on many transceivers. The mAT-10 has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-10 uses “Memory Tune” to recall the previous tuning parameters in a fraction of a second. If no memorized settings are available, the tuner runs a full tuning cycle, storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this manner, the mAT-10 “learns” as it is used, adapting to the bands and frequencies as it goes. The mAT-10 is a compact and exquisite tuner designed for FT-817/818, it can also be used in other QRP transceivers. When it is connected to FT-817/818 through a dedicated data cable mAT-, it is a dedicated tuner, which can achieve convenient “one-key tuning”. If no data cable is used, it is a universal QRP tuner for all low-power transceivers.
