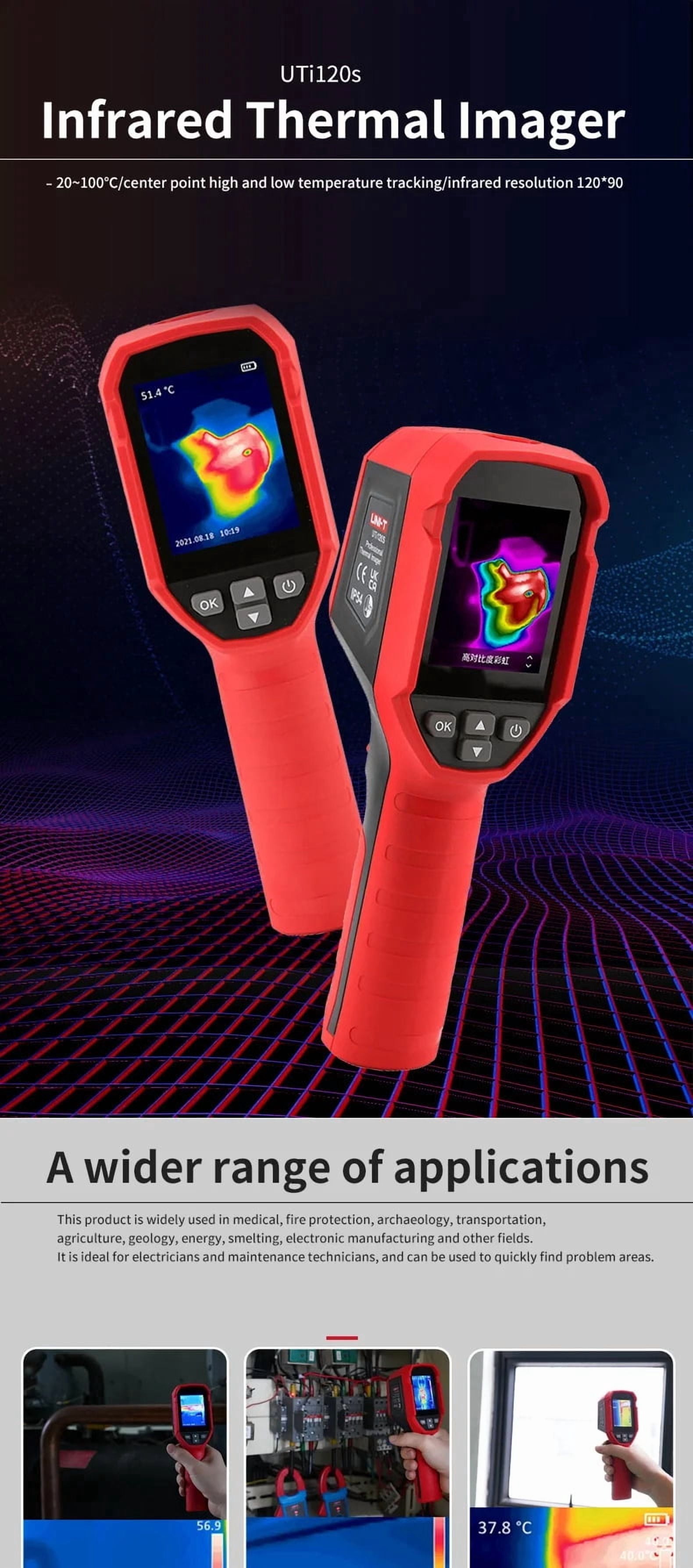

Thermal Imaging Camera, 320 x 240 TISR Resolution, 15-Hour Battery Life, 120 x 90 IR Resolution, 25Hz Handheld Infrared Camera with High/Low Temp Alerts, Auto Shutdown

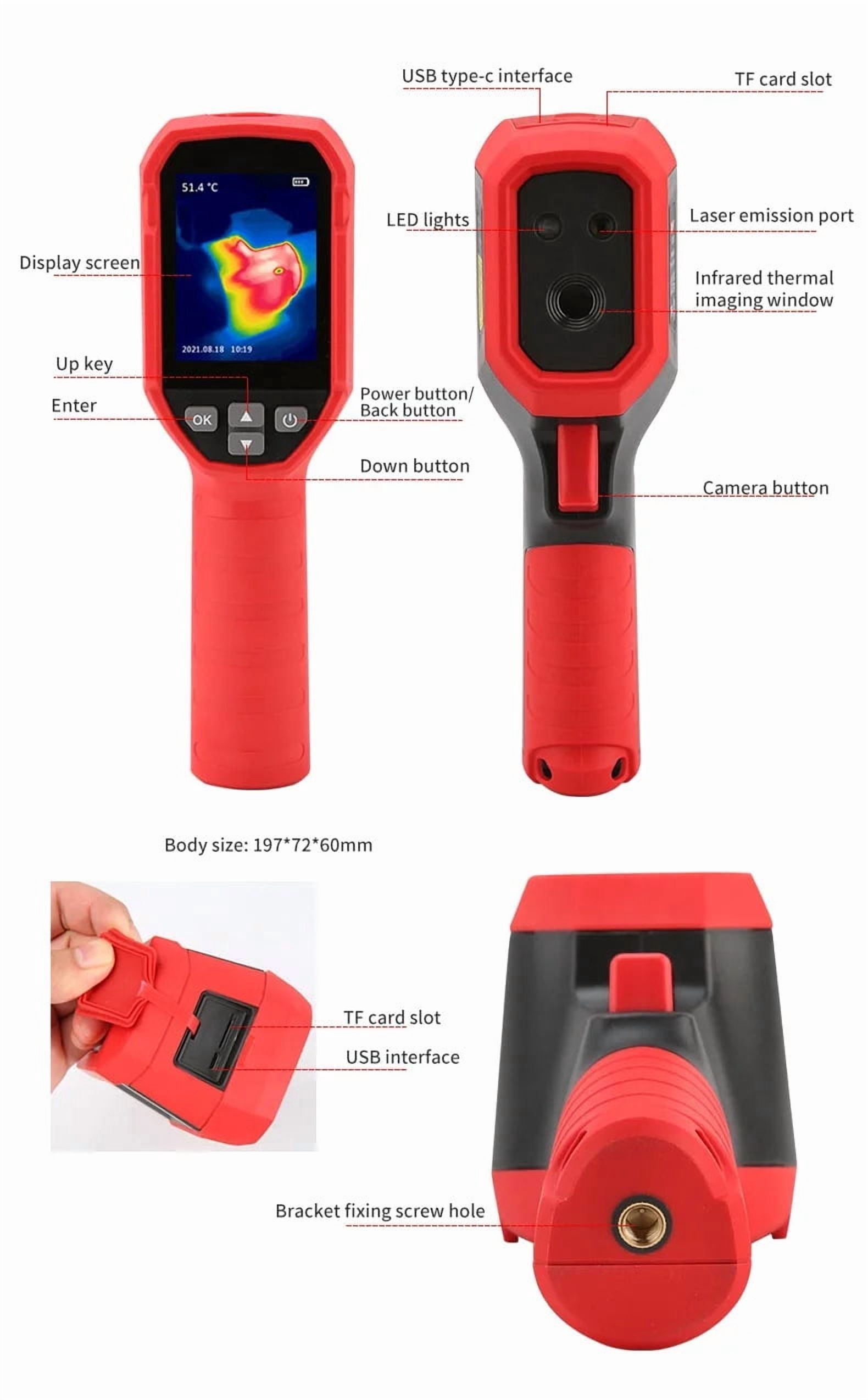

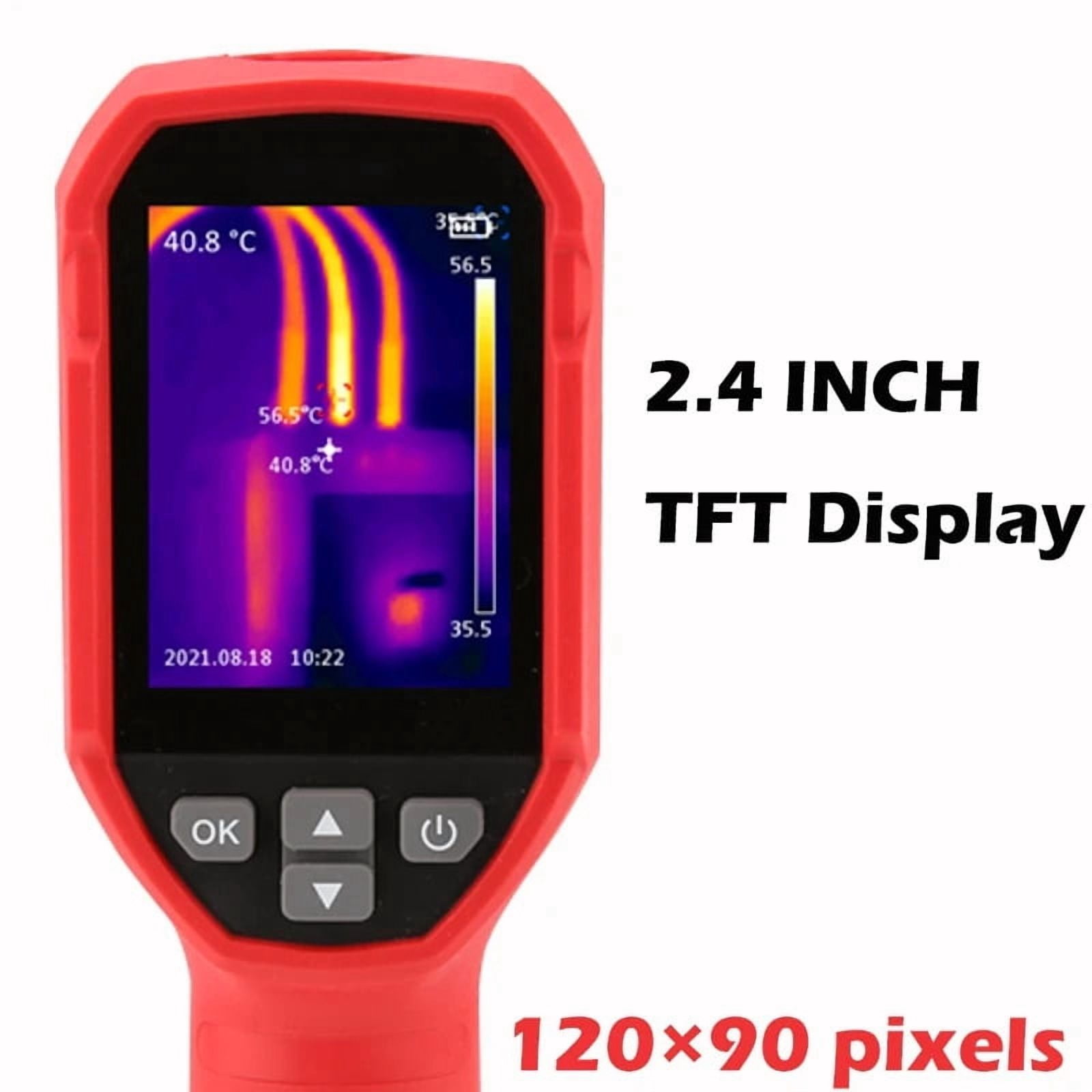

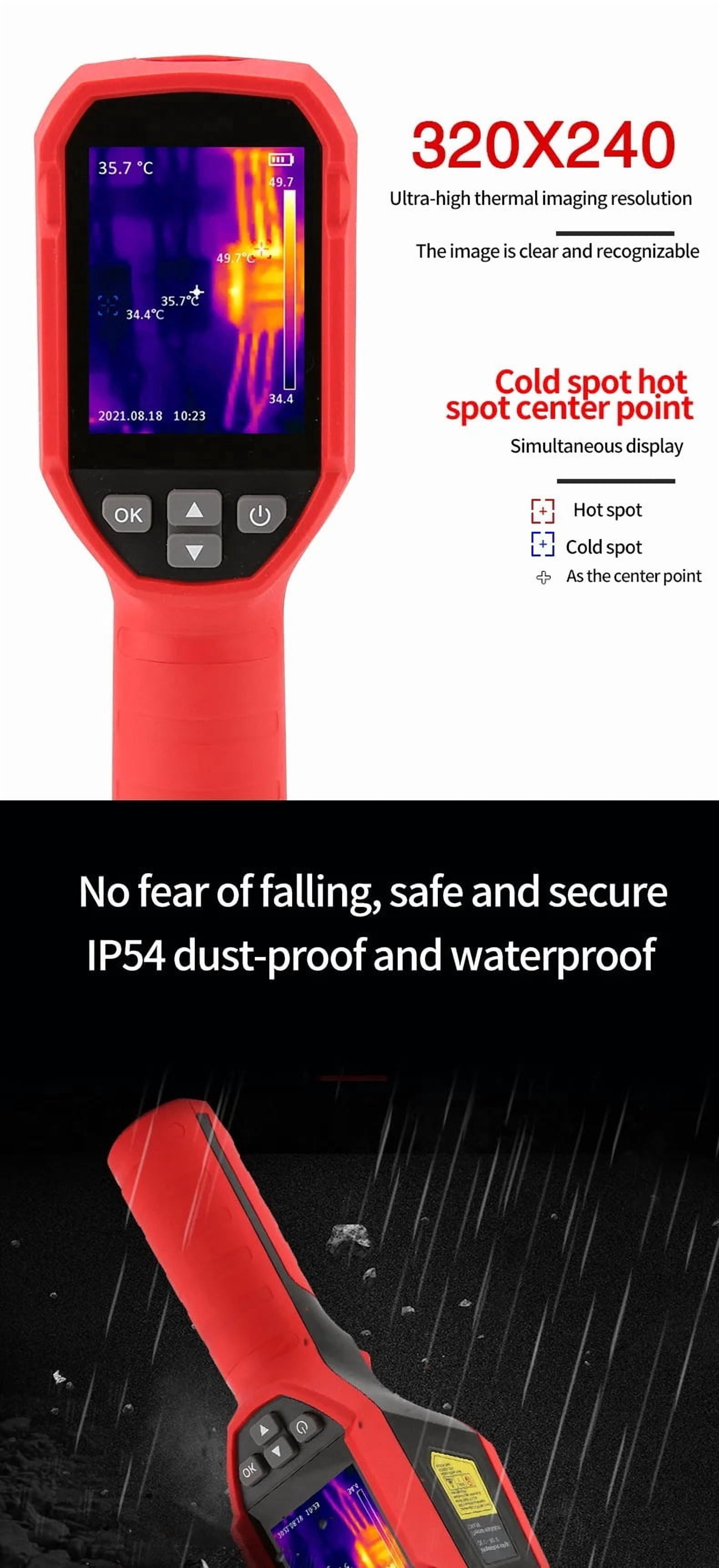

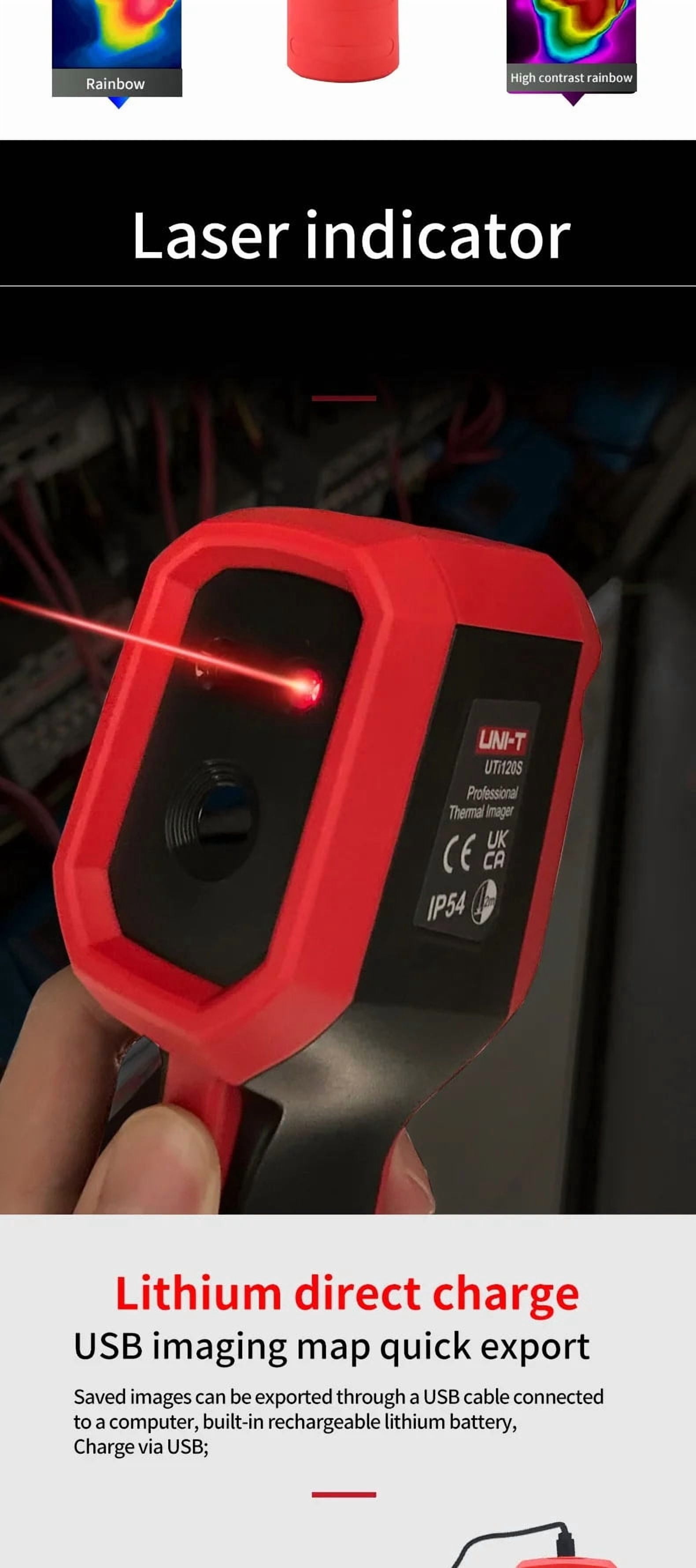

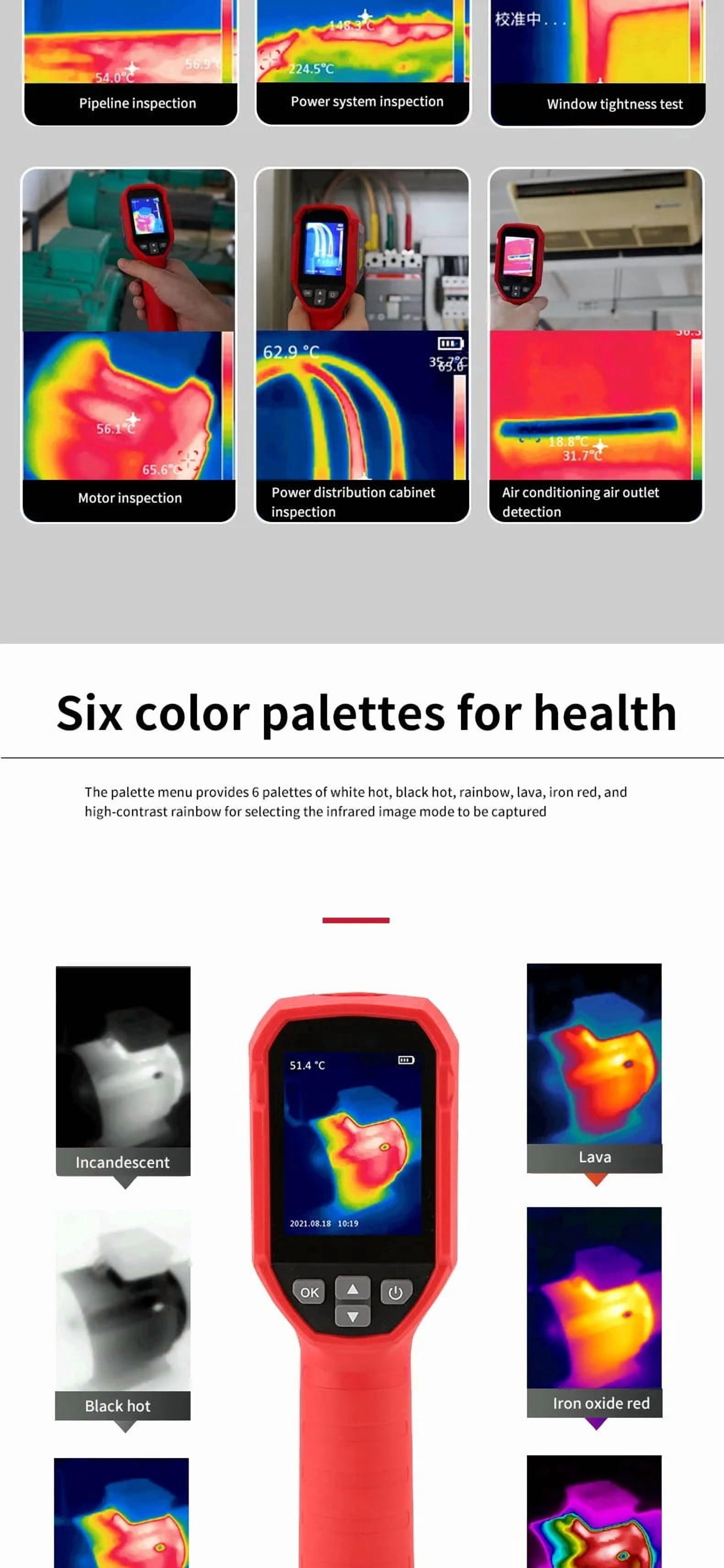

‌Clear infrared imaging and precise temperature measurement – With a 120×90 infrared resolution and a 2.4-inch 320×240 TFT display, the image is clear and distinguishable. The sensitivity is ≤ 60mK, capable of capturing even the smallest temperature differences. The temperature measurement range is -20℃ to 100℃. It supports the display of the center point, hot spot, and cold spot simultaneously, and has an automatic high/low temperature tracking function. When the temperature exceeds the limit, it can trigger triple alarms through the image, LED lights, and a buzzer, quickly locating the abnormal area. 6 types of pseudo-color palettes + laser indicator – It comes with 6 color schemes: incandescent, black heat, rainbow, lava, iron red, and high-contrast rainbow, suitable for various detection scenarios (such as power, construction, and pipelines). It also includes a laser indicator to help you accurately aim at the target being tested, avoiding misjudgment. Whether it’s motor maintenance, distribution cabinet inspection, or air conditioning outlet inspection, it can handle all tasks with ease. Sturdy and durable, adaptable to complex environments – Achieves IP54 dust and water resistance rating, and can pass a 2-meter drop test, unafraid of bumps and dust in construction sites, workshops or outdoor operations. The body is equipped with a 2600 mAh rechargeable lithium battery (18650 cell), supporting Type-C USB direct charging, with reliable battery life. The automatic shutdown time can be set (5/10/30 minutes), saving power. Convenient storage and quick export – All infrared images are saved in BMP format to the TF card (supports large capacity expansion). Connect the computer via the Type-C USB cable and you can quickly export the images like a USB drive, without the need for additional drivers. A random PC analysis software is included, which can be used on the computer to deeply analyze the temperature data and generate reports, professional and efficient. LED supplementary lighting + multi-field applications – The device is equipped with high-brightness LED lighting on the body, enabling clear observation of the tested object even in dim environments. The product is widely used in scenarios such as power inspection, pipeline leakage detection, building airtightness testing, motor maintenance, distribution cabinet inspection, and air outlet temperature measurement of air conditioners. It is also applicable in fields such as healthcare, fire protection, archaeology, agriculture, geology, and electronic manufacturing, serving as a reliable assistant for electrical engineers and maintenance technicians.
